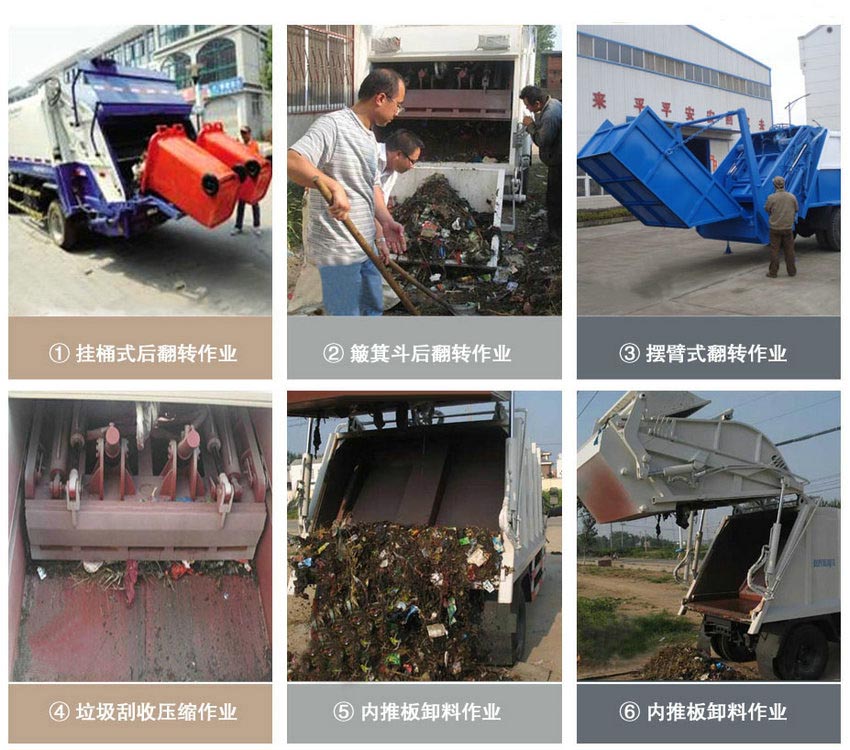

The compressed garbage truck adopts electromechanical and hydraulic integration technology, with the help of mechanical, electrical and hydraulic combined automatic control systems, and special devices such as carriages, fillers and push shovels to realize garbage dumping, crushing or flattening, powerful filling, and Trash is squeezed into the carriage and compacted and pushed away. Its main features are simple and efficient garbage collection method, automatic repeated compression and peristaltic compression functions, high compression ratio, large loading mass, automated operation, good power and environmental protection, and high vehicle utilization efficiency.
Chassis configuration: Small Truck Star 3 body, 1700mm cab, single-row front flip, all-diesel engine with 88 horsepower, National V emissions, 5-speed gearbox, 6.50R16 wire tires, steering wheel, ABS, adjustable steering wheel, cruise, Adjustable headlights, self-adjusting brake arms.

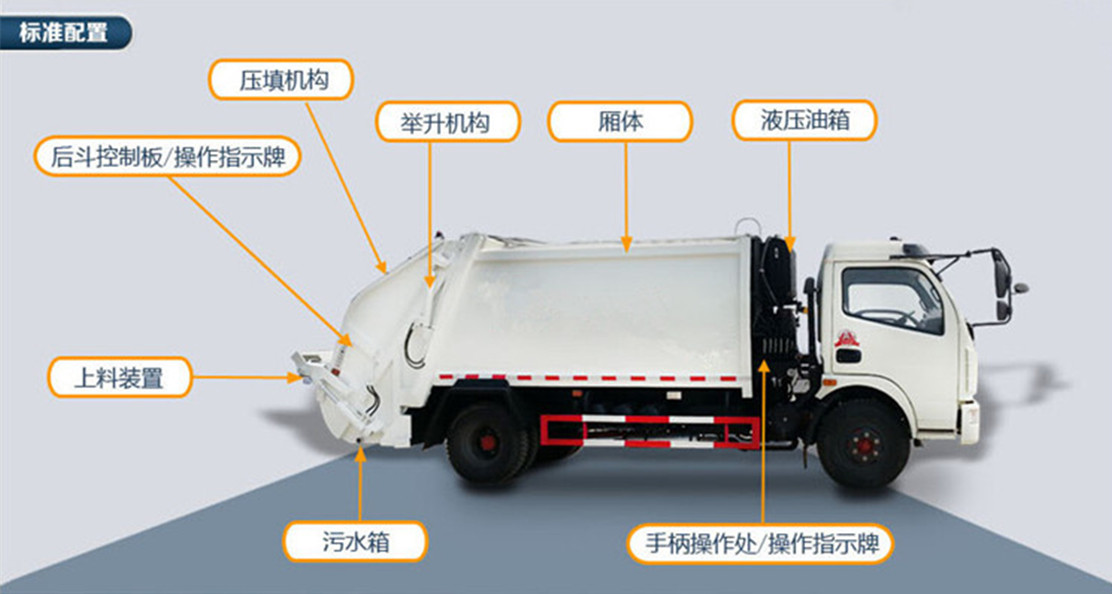

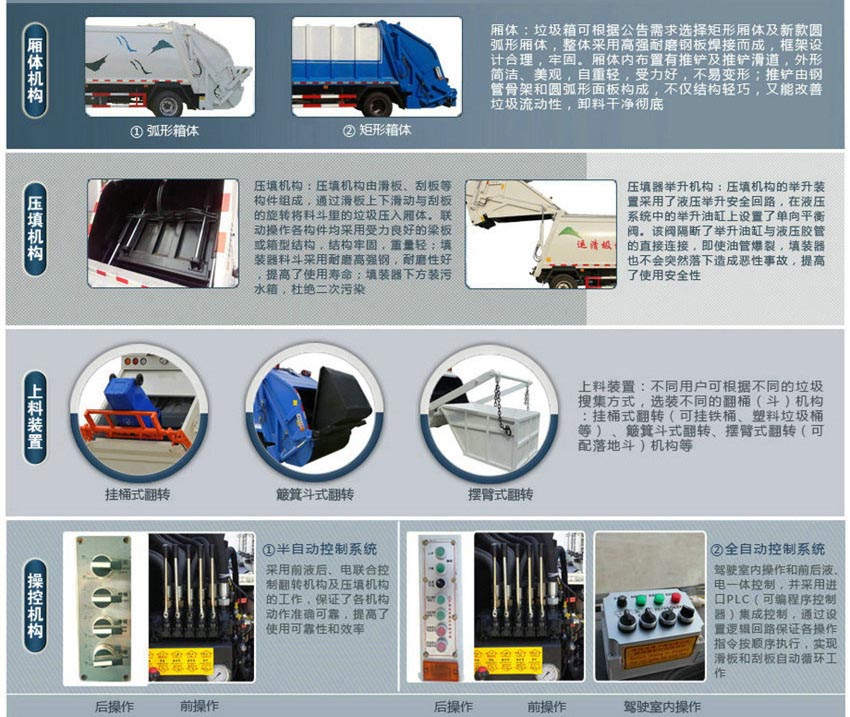

Body configuration: New rib-free box, beautiful and generous plane arc, effective compression volume of 4 cubic meters, flipping loading mechanism at the tail, electronically controlled manual dual control system, dual control boxes in the cab and the rear of the car, with a 3 cm rear belt at the rear Rubber sealing strip, with sewage collection tank, large-capacity sewage tank, the box can be spray-painted with patterns and words as required.
Vehicle accessories: Chassis certificate, chassis consistency certificate, vehicle certificate, warranty manual, service station catalog, special household invoice, vehicle tools, hydraulic pipe seals.
Advantages of the whole vehicle: high chassis configuration, 4 cubic meters of compression volume, one vehicle can carry several units, and is generally used for long-distance garbage transfer. It has a large loading capacity, high transfer efficiency, and saves fuel costs.
Compressed garbage truck performance
| Compression ratio | 3-4 times | Compression density | 0.8-0.9T/M3 |
| Trash bin volume | 4 cubic | filling time | ≤15 seconds |
| boost cycle | ≤15 seconds | Unloading time | ≤23 seconds |
| engine | Quanchai 88 HP
|
Compression method | Bidirectional compression |

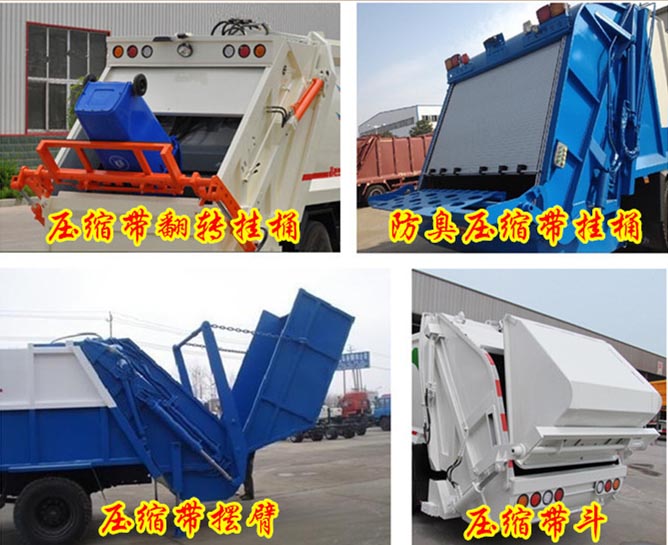

| Optional equipment | Tipping bucket, bucket rack, PLC automatic control | ||
Optional configurations of compressed garbage truck:
The cab is equipped with air conditioning, a rear feeding flip rack or bucket, and a PLC one-key control system. Vehicle accessories: 1 set of vehicle tools, various seals and gaskets, vehicle manual, warranty manual, vehicle certificate, chassis certificate, household invoice.
| Vehicle technical parameters | |||
| Vehicle name: | HCQ5045ZYSBJ5 compression garbage truck | Announcement batch: | 300 |
| Product trademark | Huatong brand | Product ID | |
| Vehicle model: | HCQ5045ZYSBJ5 | Catalog number: | (17)57 |
| Inspection-free: | release date: | 20170928 | |
| total mass | 4395(Kg) | Volume: | |
| Rated contained mass | 215(Kg) | curb weight | 4050(Kg) |
| Dimensions | 5995×2100×2500(mm) | Cargo compartment size | ××(mm) |
| Rated passenger capacity | (people) | Total mass of quasi-trailer | (kg) |
| Cab: | Front seat passenger: | 2 people) | |
| Anti-lock braking system: | have | Load capacity utilization factor | |
| Fuel type: | diesel fuel | Emission Standards: | GB17691-2005 National V, GB3847-2005 |
| Approach / departure angle: | 20/15(°) | Front suspension/rear suspension: | 1100/1745(mm) |
| Number of axes: | 2 | Wheelbase: | 2850(mm) |
| Number of tires: | 6 | Tire specifications: | 6.50-16LT,6.50R16LT |
| Front wheelbase (mm): | 1415,1475 | Rear wheelbase (mm): | 1435 |
| Axle load: | 1670/2725 | Maximum speed: | 105(km/h) |
| other | Rear extension: 300mm; protection material: carbon steel/Q235, connection method: left and right side protection bolt connection, rear lower protection is replaced by a special device, can be exempted, rear device height from the ground 390 (mm), engine model and fuel consumption one by one Corresponding to: 4A2-88C50/11.55 (L/100km), D19TCIE1/12.35 (L/100km); The special device of this vehicle is a dustbin body, which is used to transfer garbage. The ABS system controller models are CM4YL, CM4YK, CM4XL-4S/4M (4 channels and 4 wheels individually controlled). The ABS system controller manufacturer is Guangzhou Ruilicom Automotive Electronics Co., Ltd. | ||
| Chassis BJ1046V9JB5-F1 technical parameters | |||
| Chassis model | BJ1046V9JB5-F1 | Chassis company: | Beiqi Foton Motor Co., Ltd. |
| Number of tires | 6 | Number of spring leaves: | 7/7+5 |
| Tire specifications: | 6.50-16LT,6.50R16LT | Steering Type: | steering wheel |
| Front track: | 1415,1475 | Rear wheelbase: | 1435 |
| Chassis emission standards: | GB17691-2005 National V, GB3847-2005 | ||
| Fuel type: | diesel fuel | batch: | 294 |
| engine model | Engine manufacturer | Displacement (ml) | Power(kw) |
| 4A2-88C50 D19TCIE1 |
Anhui Quanchai Power Co., Ltd. Kunming Yunnei Power Co., Ltd. |
2270 1912 |
65 75 |
